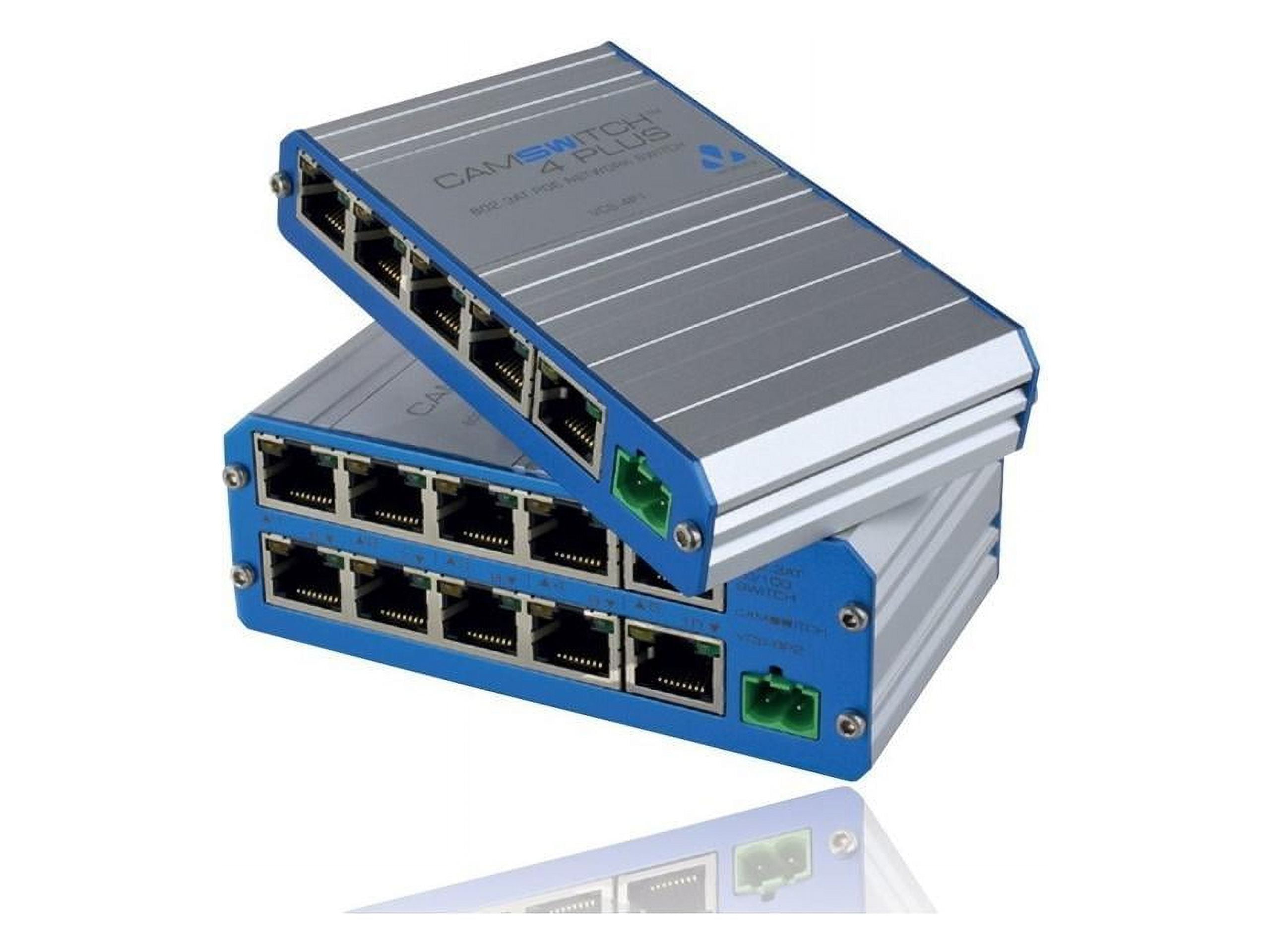

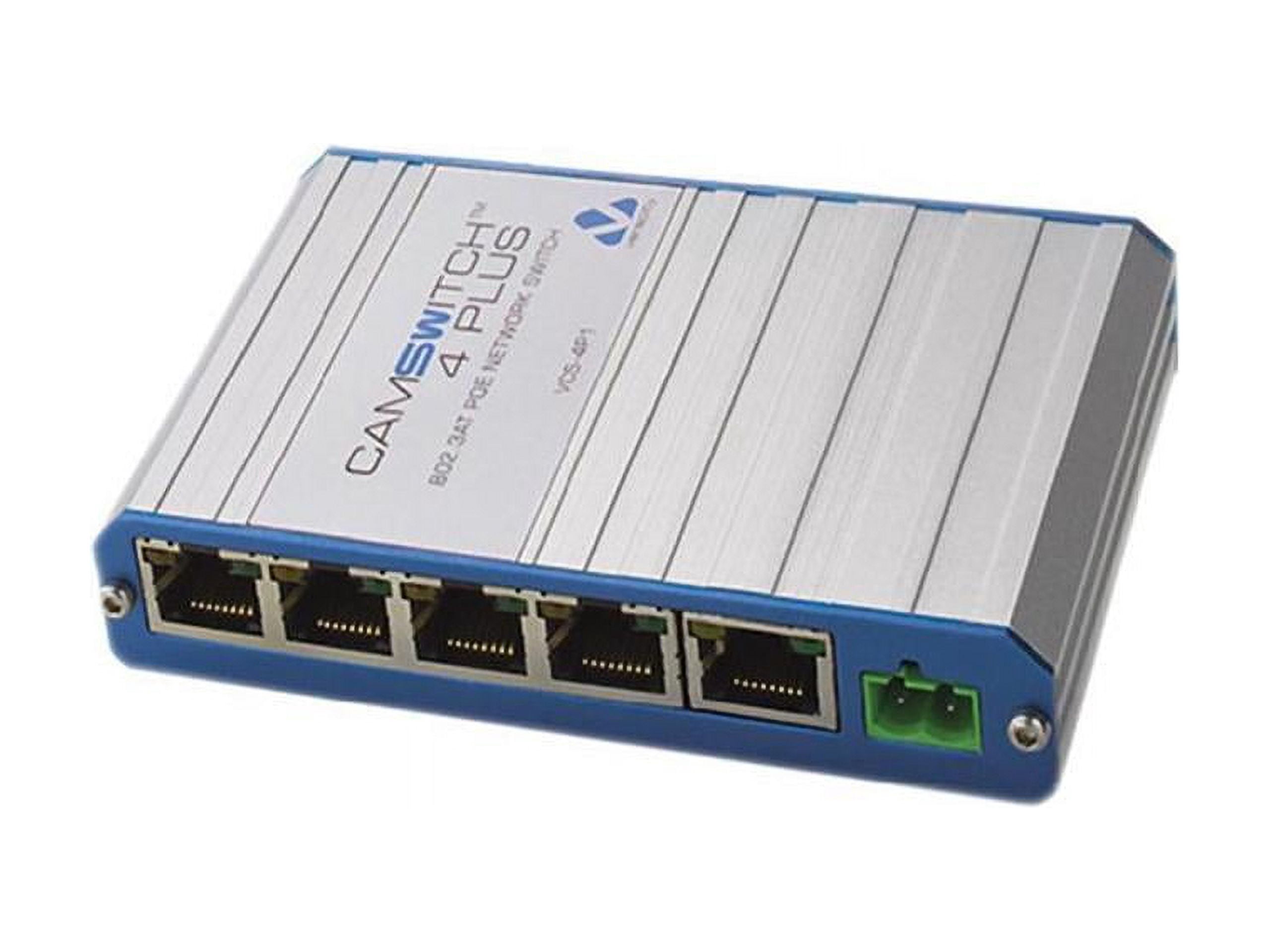

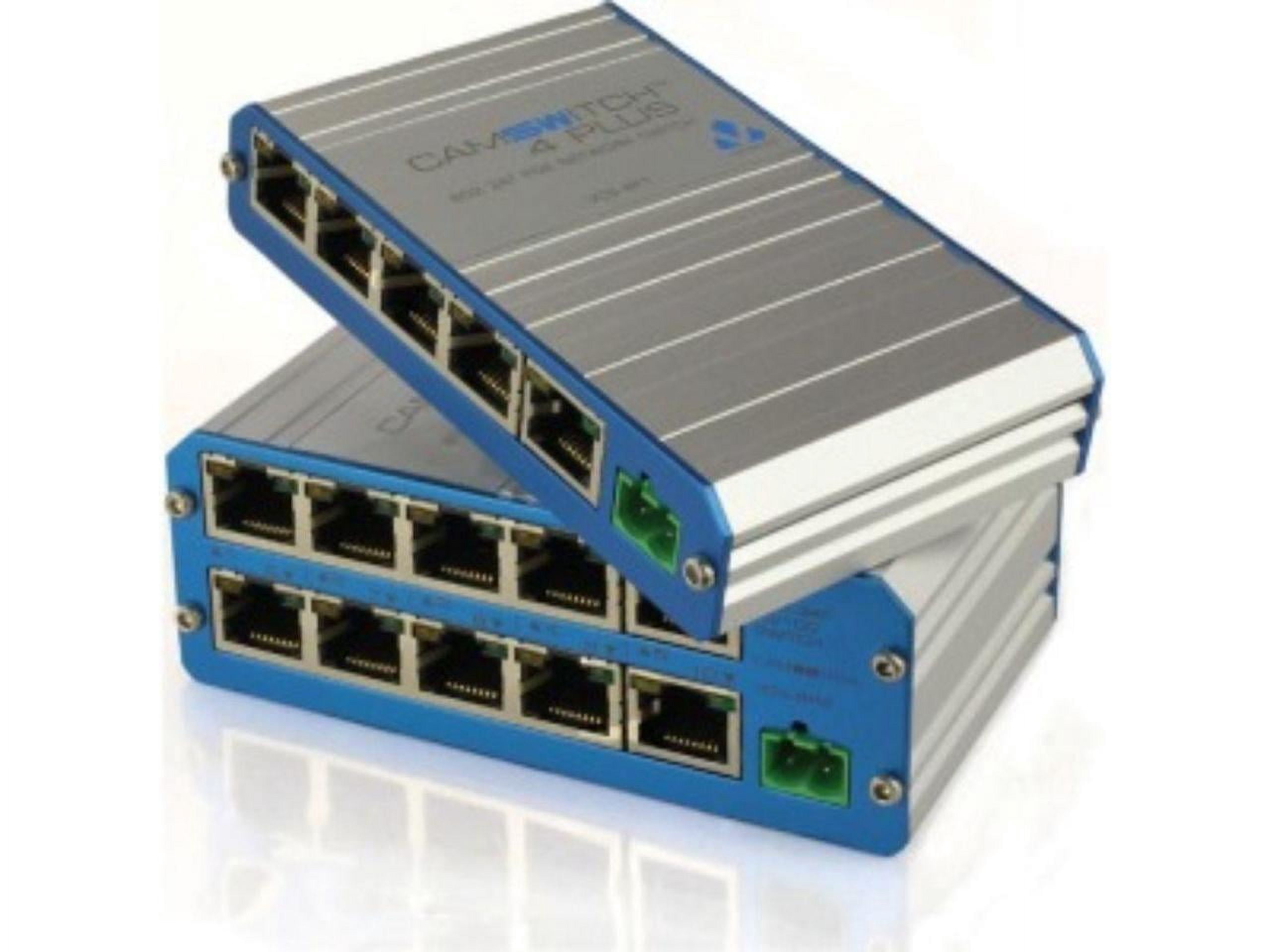

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch

<div class="product_header">General Information</div><table class="product_table"><tbody><tr><td class="product_attribute_value" colspan="2"><b>Compact and versatile 802.3at POE switches</b><br> <p>CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD. <br> <br> CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget. <br> <br> CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink. <br> <br> CAMSWITCH 8 Plus features 8 802.3at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system.</p> <p><b>802.3at POE Power</b></p> <p>CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation.</p> <p>40 watt and 78 watt camera/device power budgets are available from standard power supplies, or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions.</p> <p>CAMSWITCH Plus can be powered by POE, doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector.</p> <p>When a 57V power supply is used, CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max, HIGHWIRE PowerStar and LONGSPAN products for maximum range.</p> <p><b>Designed for installers<br><br></b>Camswitch Plus's network ports configure automatically for speed, duplex and crossover, and deliver 802.3af/at POE to compliant devices with no user setup required.</p> <p>Snap-on clips are provided for secure wall mounting, and up to 4 units can be mounted in an optional 1U rack bracket.</p></td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Interfaces/Ports</div><table class="product_table"><tbody><tr><td class="product_attribute">Total Number of Network Ports:</td><td class="product_attribute_value">5</td></tr><tr><td class="product_attribute">Uplink Port:</td><td class="product_attribute_value">No</td></tr><tr><td class="product_attribute">Modular:</td><td class="product_attribute_value">No</td></tr><tr><td class="product_attribute">Stack Port:</td><td class="product_attribute_value">No</td></tr><tr><td class="product_attribute">Port/Expansion Slot Details:</td><td class="product_attribute_value">5 x Fast Ethernet Network</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Media &amp; Performance</div><table class="product_table"><tbody><tr><td class="product_attribute">Media Type Supported:</td><td class="product_attribute_value">Twisted Pair</td></tr><tr><td class="product_attribute">Ethernet Technology:</td><td class="product_attribute_value">Fast Ethernet</td></tr><tr><td class="product_attribute">Network Technology:</td><td class="product_attribute_value">10/100Base-T</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Network &amp; Communication</div><table class="product_table"><tbody><tr><td class="product_attribute">Layer Supported:</td><td class="product_attribute_value">2</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Management &amp; Protocols</div><table class="product_table"><tbody><tr><td class="product_attribute">Manageable:</td><td class="product_attribute_value">No</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Power Description</div><table class="product_table"><tbody><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">PoE</td></tr><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">Power Supply</td></tr><tr><td class="product_attribute">Redundant Power Supply Supported:</td><td class="product_attribute_value">No</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Physical Characteristics</div><table class="product_table"><tbody><tr><td class="product_attribute">Height:</td><td class="product_attribute_value">0.9"</td></tr><tr><td class="product_attribute">Width:</td><td class="product_attribute_value">4.3"</td></tr><tr><td class="product_attribute">Depth:</td><td class="product_attribute_value">2.5"</td></tr><tr><td class="product_attribute">Weight (Approximate):</td><td class="product_attribute_value">4.76 oz</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Miscellaneous</div><table class="product_table"><tbody><tr><td class="product_attribute">TAA Compliant:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">NDAA Compliant:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmentally Friendly:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Restriction of Hazardous Substances (RoHS)</td></tr></tbody></table>

• 4 Plus- Powered Via Poe Or 57V Dc
• 4 PLUS- POWERED VIA POE OR 57V DC
• VCS-4P1
• VER-VCS-4P1
